Características
_x000D_- _x000D_
- Socket AMD AM5: Preparado para procesadores AMD Ryzen™ series 9000, 8000 y 7000_x000D_
- Conectividad ultrarrápida: WIFI 6E, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 10Gbps Type-C®, USB frontal 5Gbps Type-C®, Thunderbolt™ Compatibilidad con 4 conectores_x000D_
- ASUS OptiMem II: Enrutamiento cuidadoso de pistas y vías, además de optimizaciones de la capa de tierra para preservar la integridad de la señal para un mejor overclocking de la memoria_x000D_
- Refrigeración integral: disipador de calor VRM, disipador de calor M.2, disipador de calor PCH, conectores de ventilador híbridos y Fan Xpert 2+_x000D_
- Iluminación Aura Sync RGB: Conectores Gen 2 direccionables integrados y conector Aura RGB para tiras LED RGB, que se sincronizan fácilmente con hardware compatible con Aura Sync_x000D_

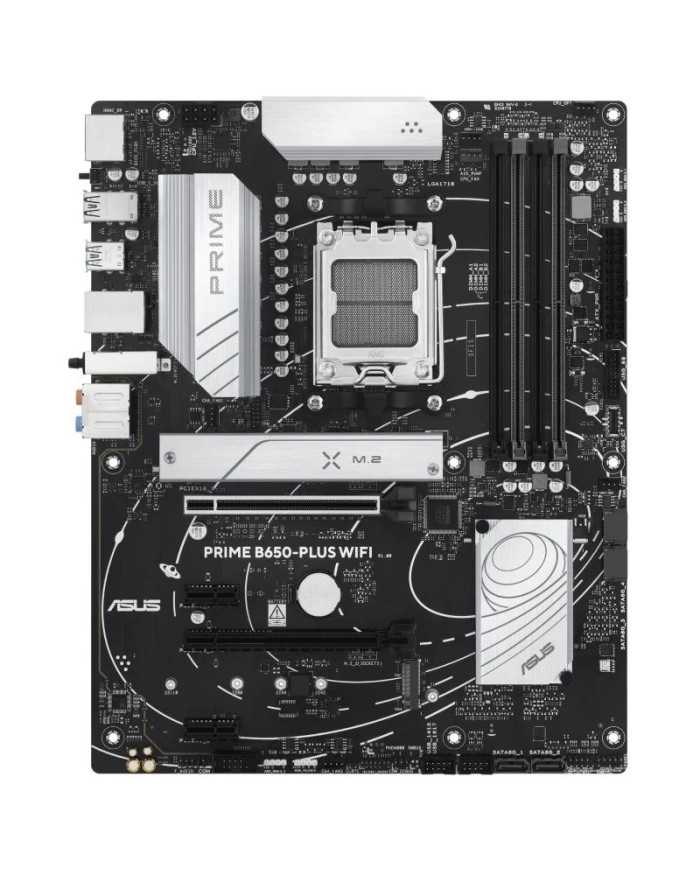

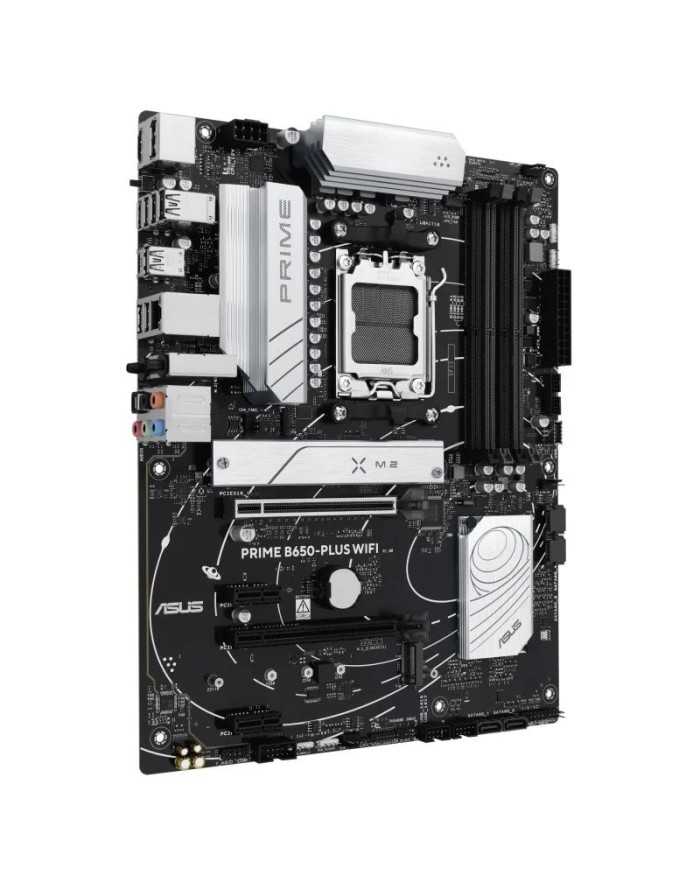

Especificaciones ASUS PRIME B650-PLUS WIFI
_x000D_- _x000D_
- Procesador_x000D_
- _x000D_
- AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*_x000D_
- * Refer to www.asus.com for CPU support list._x000D_
- Chipset: AMD B650 Chipset_x000D_
- Memoria_x000D_
- _x000D_
- 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*_x000D_
- Dual Channel Memory Architecture_x000D_
- Supports AMD Extended Profiles for Overclocking (EXPO™)_x000D_
- OptiMem II_x000D_
- * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list._x000D_
- * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function._x000D_
- Gráficos_x000D_
- _x000D_
- 1 x DisplayPort**_x000D_
- 1 x HDMITM port***_x000D_
- * Graphics specifications may vary between CPU types._x000D_
- ** Supports max. 8K@60Hz as specified in DisplayPort 1.4._x000D_
- *** Supports 4K@60Hz as specified in HDMI 2.1._x000D_
- Expansión
_x000D_- _x000D_
- 1 x PCIe 4.0 x16 slot (supports x16 mode)_x000D_
- 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**_x000D_
- 1 x PCIe 4.0 x16 slot (supports x4 mode)_x000D_
- 2 x PCIe 4.0 x1 slots_x000D_
- * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)._x000D_
- ** Specifications vary by CPU types._x000D_
- Almacenamiento_x000D_
- _x000D_
- M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)_x000D_
- M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)_x000D_
- 4 x SATA 6Gb/s ports_x000D_
- * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10._x000D_
- ** Specifications vary by CPU types._x000D_
- Ethernet
_x000D_- _x000D_
- 1 x Realtek 2.5Gb Ethernet_x000D_
- Inalámbrico_x000D_
- _x000D_
- Wi-Fi 6E_x000D_
- 2x2 Wi-Fi 6E (802.11ax)_x000D_
- Supports 2.4/5/6GHz frequency band*_x000D_
- Bluetooth® v5.3**_x000D_
- * Wi-Fi 6GHz frequency band regulatory may vary between countries._x000D_
- ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications._x000D_
- USB
_x000D_- _x000D_
- Rear USB (Total 8 ports)
_x000D_- _x000D_
- 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C®)_x000D_
- 2 x USB 5Gbps ports (2 x Type-A)_x000D_
- 2 x USB 2.0 ports (2 x Type-A)_x000D_
- Front USB (Total 7 ports)
_x000D_- _x000D_
- 1 x USB 5Gbps connector (supports USB Type-C®)_x000D_
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports_x000D_
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports_x000D_
- Audio_x000D_
- _x000D_
- Realtek 7.1 Surround Sound High Definition Audio CODEC_x000D_
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking_x000D_
- Supports up to 24-Bit/192 kHz playback_x000D_
- Audio Features_x000D_
- Audio Shielding_x000D_
- Premium audio capacitors_x000D_
- Dedicated audio PCB layers_x000D_

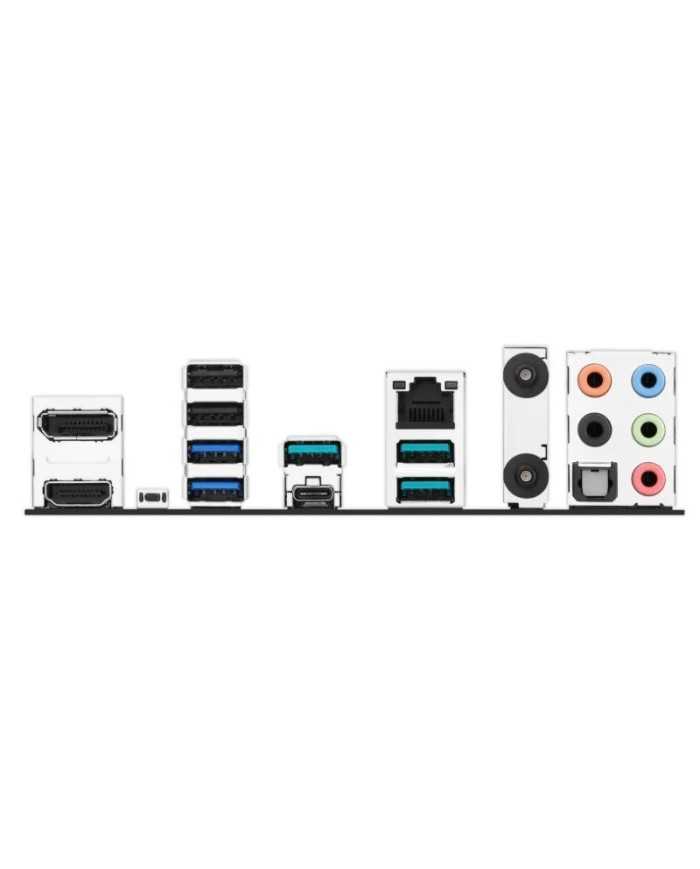

- Puertos traseros_x000D_
- _x000D_
- 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C®)_x000D_
- 2 x USB 5Gbps ports (2 x Type-A)_x000D_
- 2 x USB 2.0 ports (2 x Type-A)_x000D_
- 1 x DisplayPort_x000D_
- 1 x HDMI port_x000D_
- 1 x Wi-Fi Module_x000D_
- 1 x Realtek 2.5Gb Ethernet port_x000D_
- 5 x Audio jacks_x000D_
- 1 x Optical S/PDIF out port_x000D_
- 1 x BIOS FlashBack™ button_x000D_
- Conectores internos_x000D_
- _x000D_
- Fan and Cooling related
_x000D_- _x000D_
- 1 x 4-pin CPU Fan header_x000D_
- 1 x 4-pin CPU OPT Fan header_x000D_
- 1 x 4-pin AIO Pump header_x000D_
- 3 x 4-pin Chassis Fan headers_x000D_
- Power related
_x000D_- _x000D_
- 1 x 24-pin Main Power connector_x000D_
- 1 x 8-pin +12V Power connector_x000D_
- Storage related
_x000D_- _x000D_
- 2 x M.2 slots (Key M)_x000D_
- 4 x SATA 6Gb/s ports_x000D_
- USB
_x000D_- _x000D_
- 1 x USB 5Gbps connector (supports USB Type-C® )_x000D_
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports_x000D_
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports_x000D_
- Miscellaneous
_x000D_- _x000D_
- 3 x Addressable Gen 2 headers_x000D_
- 1 x Aura RGB header_x000D_
- 1 x Clear CMOS header_x000D_
- 1 x COM Port header_x000D_
- 1 x Front Panel Audio header (AAFP)_x000D_
- 1 x SPI TPM header (14-1pin)_x000D_
- 1 x 20-3 pin System Panel header with Chassis intrude function_x000D_
- 1 x Thunderbolt™ (USB4®) header_x000D_
- Especiales_x000D_
- _x000D_
- ASUS 5X PROTECTION III_x000D_
- DIGI+ VRM_x000D_
- LANGuard_x000D_
- Overvoltage Protection_x000D_
- Safeslot Core+_x000D_
- Stainless-Steel Back I/O_x000D_
- ASUS Q-Design_x000D_
- Q-DIMM_x000D_
- Q-LED Core_x000D_
- Q-Slot_x000D_
- ASUS Thermal Solution_x000D_
- Flexible M.2 heatsink_x000D_
- VRM heatsink design_x000D_
- ASUS EZ DIY_x000D_
- BIOS FlashBack™ button_x000D_
- BIOS FlashBack™ LED_x000D_
- ProCool_x000D_
- Aura Sync
_x000D_- _x000D_
- Aura RGB header_x000D_
- Addressable Gen 2 headers_x000D_
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS_x000D_
- Formato: ATX_x000D_
