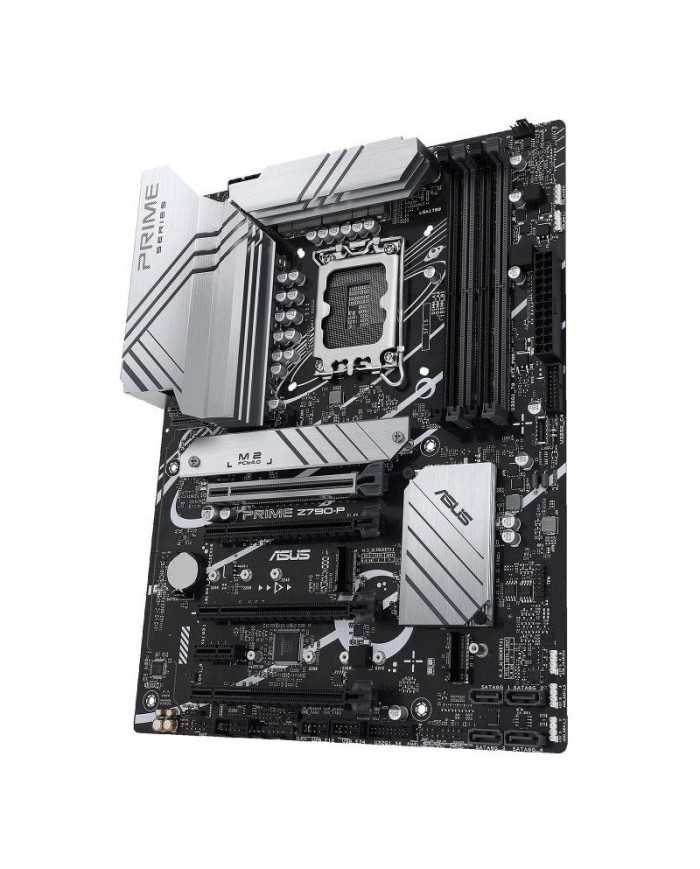

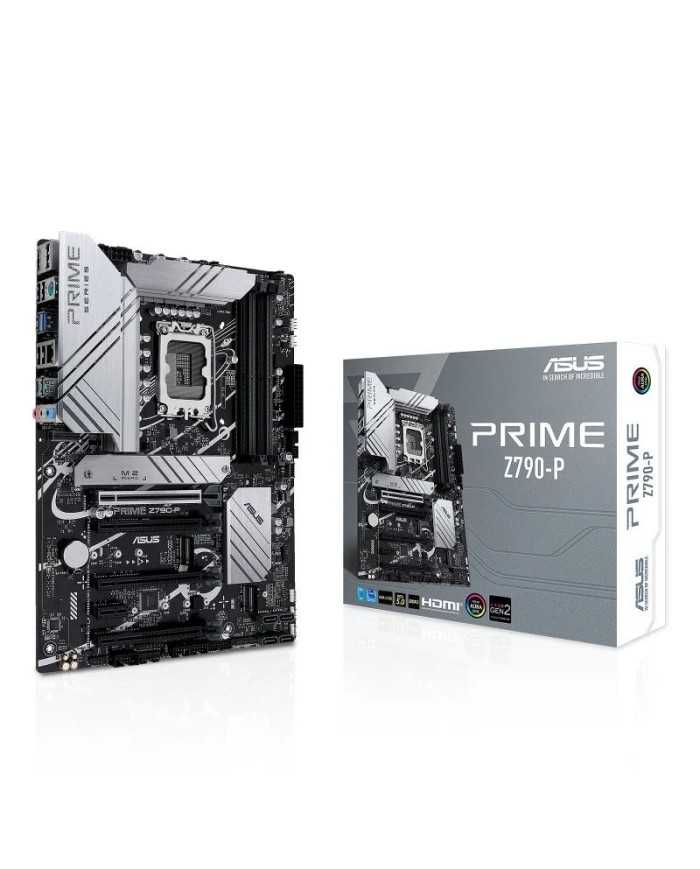

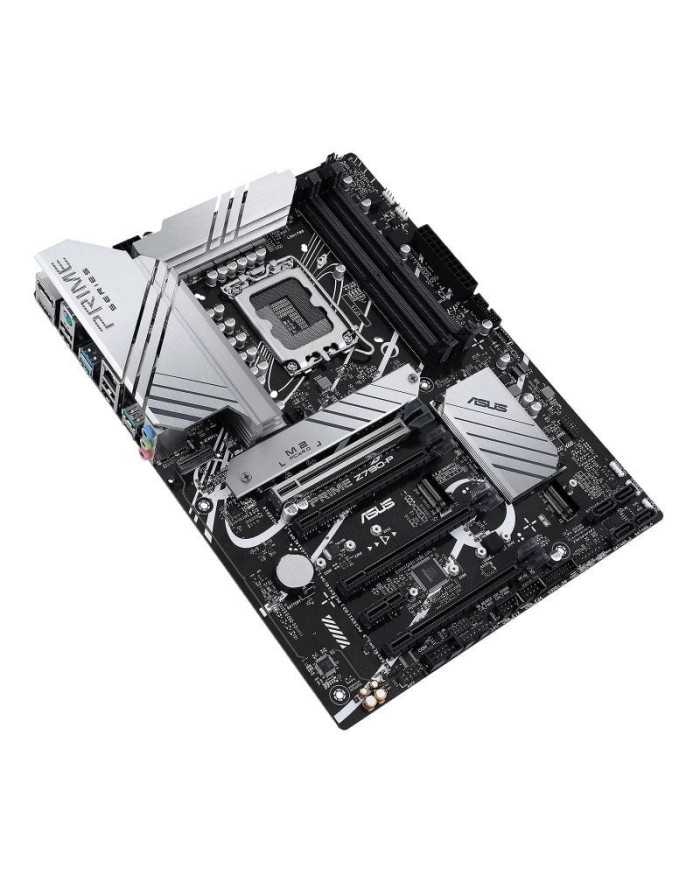

PLACA BASE ASUS Z790-P WIFI ATX X4DDR5 HDMI + DISPLAYPORT

Características

• _x000D_
• Zócalo Intel® LGA 1700: Listo para procesadores Intel® de 12.ª y 13.ª generación_x000D_
• Solución de alimentación mejorada: 14+1 DrMOS, PCB de 6 capas, conectores ProCool, estranguladores de aleación y condensadores duraderos para un suministro de energía estable_x000D_
• Conectividad de próxima generación: memoria DDR5, PCIe® 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C®, USB 3.2 Gen 2 Type-C® en el panel frontal, compatibilidad con encabezado Thunderbolt™ (USB4®), 3 PCIe® 4.0 M .2_x000D_
• Tecnología de memoria exclusiva: ASUS Enhanced Memory Profile II y ASUS OptiMem II_x000D_
• Refrigeración integral: disipadores de calor VRM grandes, disipador de calor M.2 flexible, disipador de calor PCH, encabezados de ventilador híbrido y Fan Xpert 4 con AI Cooling II_x000D_

Especificaciones:

• _x000D_
• CPU_x000D_
  • _x000D_
  • Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*_x000D_
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**_x000D_
  • * Refer to www.asus.com for CPU support list._x000D_
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types._x000D_
  _x000D_ _x000D_
• Chipset_x000D_
  • _x000D_
  • Intel® Z790 Chipset_x000D_
  _x000D_ _x000D_
• Memory_x000D_
  • _x000D_
  • 4 x DIMM, Max. 128GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*_x000D_
  • Dual Channel Memory Architecture_x000D_
  • Supports Intel® Extreme Memory Profile (XMP)_x000D_
  • OptiMem II_x000D_
  • * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list._x000D_
  • * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function._x000D_
  _x000D_ _x000D_
• Graphics_x000D_
  • _x000D_
  • 1 x DisplayPort**_x000D_
  • 1 x HDMI® port***  _x000D_
  • *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates._x000D_
  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4._x000D_
  • *** Supports 4K@60Hz as specified in HDMI 2.1._x000D_
  _x000D_ _x000D_
• Expansion Slots_x000D_
  • _x000D_
  • Intel® 13th & 12th Gen Processors*_x000D_
  • 1 x PCIe 5.0 x16 slot_x000D_
  • Intel® Z790 Chipset_x000D_
  • 3 x PCIe 4.0 x16 slots (support x4 mode)_x000D_
  • 1 x PCIe 3.0 x1 slot_x000D_
  • * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)._x000D_
  • - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals._x000D_
  _x000D_ _x000D_
• Storage_x000D_
  • _x000D_
  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*_x000D_
  • Intel® 13th & 12th Gen Processors_x000D_
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)_x000D_
  • Intel® Z790 Chipset_x000D_
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)_x000D_
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)_x000D_
  • 4 x SATA 6Gb/s ports_x000D_
  • * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10._x000D_
  _x000D_ _x000D_
• Ethernet_x000D_
  • _x000D_
  • 1 x Realtek 2.5Gb Ethernet_x000D_
  _x000D_ _x000D_
• Wireless & Bluetooth_x000D_
  • _x000D_
  • Vertical M.2 slot only (Key E, CNVi & PCIe)*_x000D_
  • *Wi-Fi module is sold separately._x000D_
  _x000D_ _x000D_
• USB_x000D_
  • _x000D_
  • Rear USB (Total 8 ports)_x000D_
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)_x000D_
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)_x000D_
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)_x000D_
  • 4 x USB 2.0 ports (4 x Type-A)_x000D_
  • Front USB (Total 9 ports)_x000D_
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)_x000D_
  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports_x000D_
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports_x000D_
  • * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth._x000D_
  • * USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth._x000D_
  _x000D_ _x000D_
• Audio_x000D_
  • _x000D_
  • Realtek 7.1 Surround Sound High Definition Audio CODEC*_x000D_
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking_x000D_
  • - Supports up to 24-Bit/192 kHz playback_x000D_
  • Audio Features_x000D_
  • - Audio Shielding_x000D_
  • - Premium audio capacitors_x000D_
  • - Dedicated audio PCB layers_x000D_
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output._x000D_
  _x000D_ _x000D_
• Back Panel I/O Ports_x000D_
  • _x000D_
  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)_x000D_
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)_x000D_
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)_x000D_
  • 4 x USB 2.0 ports (4 x Type-A)_x000D_
  • 1 x DisplayPort_x000D_
  • 1 x HDMI® port_x000D_
  • 1 x Vertical M.2 slot (Key E)_x000D_
  • 1 x Realtek 2.5Gb Ethernet port_x000D_
  • 3 x Audio jacks_x000D_
  • 1 x PS/2 Keyboard/Mouse combo port_x000D_
  _x000D_ _x000D_
• Internal I/O Connectors_x000D_
  • _x000D_
  • Fan and Cooling related_x000D_
  • 1 x 4-pin CPU Fan header_x000D_
  • 1 x 4-pin CPU OPT Fan header_x000D_
  • 1 x 4-pin AIO Pump header_x000D_
  • 3 x 4-pin Chassis Fan headers_x000D_
  • Power related_x000D_
  • 1 x 24-pin Main Power connector_x000D_
  • 1 x 8-pin +12V Power connector_x000D_
  • 1 x 4-pin +12V Power connector_x000D_
  • Storage related_x000D_
  • 3 x M.2 slots (Key M)_x000D_
  • 4 x SATA 6Gb/s ports_x000D_
  • USB_x000D_
  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)_x000D_
  • 2 x USB 3.2 Gen 1 headers support  4 additional USB 3.2 Gen 1 ports_x000D_
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports_x000D_
  • Miscellaneous_x000D_
  • 3 x Addressable Gen 2 headers_x000D_
  • 2 x Aura RGB headers_x000D_
  • 1 x Clear CMOS header_x000D_
  • 1 x COM Port header_x000D_
  • 1 x Front Panel Audio header (AAFP)_x000D_
  • 1 x S/PDIF Out header_x000D_
  • 1 x SPI TPM header (14-1pin)_x000D_
  • 1 x 20-5pin System Panel header_x000D_
  • 1 x Thunderbolt™ (USB4®) Header_x000D_
  _x000D_ _x000D_
• Special Features_x000D_
  • _x000D_
  • ASUS 5X PROTECTION III_x000D_
  • - DIGI+ VRM (- Digital power design with DrMOS)_x000D_
  • - LANGuard_x000D_
  • - Overvoltage Protection_x000D_
  • - SafeSlot Core+_x000D_
  • - Stainless-Steel Back I/O_x000D_
  • ASUS Q-Design_x000D_
  • - Q-DIMM_x000D_
  • - Q-Slot_x000D_
  • - Q-LED Core_x000D_
  • ASUS Thermal Solution_x000D_
  • - Flexible M.2 heatsink_x000D_
  • - VRM heatsink design_x000D_
  • ASUS EZ DIY_x000D_
  • - ProCool_x000D_
  • Aura Sync_x000D_
  • - Aura RGB headers_x000D_
  • - Addressable Gen 2 headers_x000D_
  _x000D_ _x000D_
• Software Features_x000D_
  • _x000D_
  • ASUS Exclusive Software_x000D_
  • Armoury Crate_x000D_
  • - Aura Sync_x000D_
  • - Fan Xpert 4 (with AI Cooling II)_x000D_
  • - Power Saving_x000D_
  • AI Suite 3_x000D_
  • -TurboV EVO_x000D_
  • -PC Cleaner_x000D_
  • -DIGI+ VRM_x000D_
  • ASUS CPU-Z_x000D_
  • WinRAR_x000D_
  • UEFI BIOS_x000D_
  • ASUS EZ DIY_x000D_
  • - ASUS CrashFree BIOS 3_x000D_
  • - ASUS EZ Flash 3_x000D_
  • - ASUS UEFI BIOS EZ Mode_x000D_
  _x000D_ _x000D_
• BIOS_x000D_
  • _x000D_
  • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS_x000D_
  _x000D_ _x000D_
• Manageability_x000D_
  • _x000D_
  • WOL by PME, PXE_x000D_
  _x000D_ _x000D_
• Accessories_x000D_
  • _x000D_
  • Cables_x000D_
  • 2 x SATA 6Gb/s cables_x000D_
  _x000D_ _x000D_
• Miscellaneous_x000D_
  • _x000D_
  • 1 x I/O Shield_x000D_
  • 1 x M.2 Rubber Package_x000D_
  • 2 x Screw packages for M.2 SSD_x000D_
  _x000D_ _x000D_
• Documentation_x000D_
  • _x000D_
  • 1 x User guide_x000D_
  _x000D_ _x000D_
• Operating System_x000D_
  • _x000D_
  • Windows® 11, Windows® 10 64-bit_x000D_
  _x000D_ _x000D_
• Form Factor_x000D_
  • _x000D_
  • ATX Form Factor_x000D_
  • 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )_x000D_
  _x000D_ _x000D_
